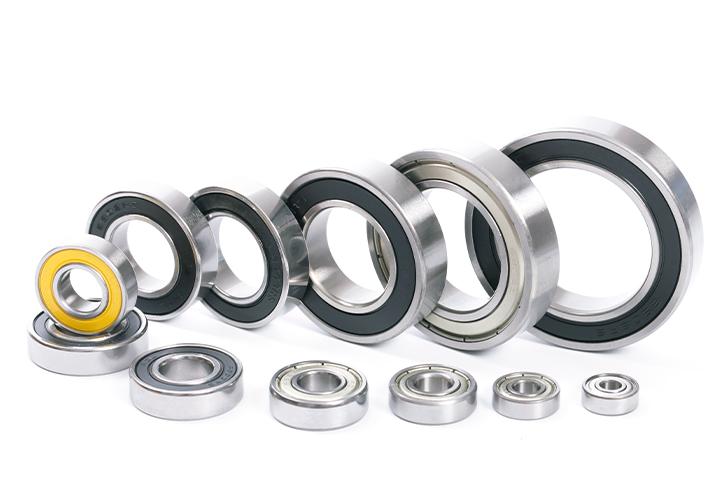

69 Series Thin Section Ball Bearing

69 Series Thin Section Ball Bearing tandard Thin Section bearings: Metric dimensional series for limited space applications and heavier loads. 69 Series are produced open, shielded, sealed or with various combination of closures.

odel	Dimension			Basic Load Roting		Balls		Limiting Speed (r/min)		Weight (approx.)
	d	D	B	Cr	Cor	Qty	Dia.	Grease	Oil	g
	mm	mm	mm	N	N	PCS	mm	Grease	Oil	g
693	3	8	4	550	180	6	φ1.588	60000	67000	0.8
694	4	11	4	710	270	8	φ1.588	48000	50000	1.7
695	5	13	4	1080	430	8	φ2.000	43000	50000	2.3
696	6	15	5	1480	600	8	φ2.381	40000	45000	3.6
697	7	17	5	1600	720	9	φ2.381	36000	43000	5
698	8	19	6	2658	1097	7	φ3.500	36000	43000	7.6
699	9	20	6	2485	1104	8	φ3.175	34000	40000	8.5
6900	10	22	6	2700	1280	9	φ3.175	32000	38000	10
6901	12	24	6	2890	1480	10	φ3.175	30000	36000	12
6902	15	28	7	4320	2270	10	φ3.969	26000	30000	18
6903	17	30	7	4590	2550	11	φ3.969	24000	28000	19
6904	20	37	9	6380	3670	11	φ4.763	19000	22000	38
6905	25	42	9	6650	4190	12	φ4.763	16000	19000	44
6906	30	47	9	7210	5050	14	φ4.763	14000	17000	50
6907	35	55	10	10370	7190	13	φ5.953	12000	15000	75
6908	40	62	12	13000	9230	13	φ6.747	11000	13000	118
6909	45	68	12	14120	10850	15	φ6.747	9500	12000	128
6910	50	72	12	14510	11720	16	φ6.747	9000	11000	133
6911	55	80	13	16090	13140	16	φ7.144	8000	9500	177
6912	60	85	13	16430	14230	17	φ7.144	7500	9000	191
6913	65	90	13	17310	16000	19	φ7.144	7100	8500	200
6914	70	100	16	23570	21250	17	φ8.731	6300	7500	327
6915	75	105	16	24490	22500	18	φ8.731	6000	7100	345
